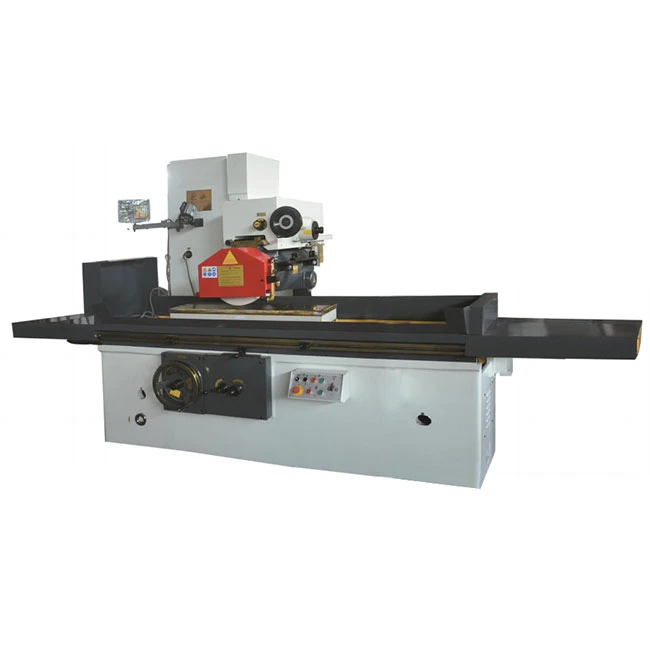

Horizontal Spindle Rectangular Table Surface Grinder
Model: MX-7180
Max. Workpiece to bi Groud: 1600x800x600mm
Longitudinal Motion Stroke (Hydraulic): 1700mm
Distance From Table Surface To Spindle Center: 780mm
The Max. Stroke of Transverse Motion: 850mm
Spindle Speeds: 1440r/min
Wheel Size (Dia*Width*Bore): Φ450x50xΦ203mm
Machine Size: 4500x2480x2950mm
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The MX-7180 horizontal spindle rectangular table surface grinder machine is a highly efficient and versatile tool that can perform a wide range of grinding operations on various workpieces. With its advanced features and precision engineering, this machine is an excellent choice for manufacturing companies looking to improve their productivity and efficiency.
The horizontal spindle design allows for a greater degree of accuracy and precision in the grinding process. The rectangular table surface provides a large and stable workpiece support area. This makes it easier to handle larger parts and ensures a higher degree of uniformity across different workpieces. Additionally, the machine's rigid construction and advanced control systems help to maintain consistent performance over extended periods of use.

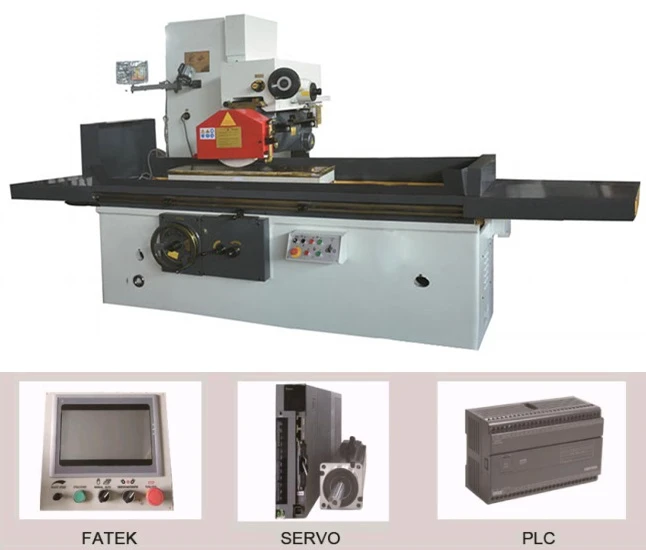

Horizontal Spindle Rectangular Table Surface Grinder MX-7180
|
MX-7180 |
Semi-automatic |
Fully-automatic |
|
Vertical |
Rapid movement and manual |
AC servo motor |
|
Cross |
Auto intermittent |
Motor |
|
Longitudinal |
Hydraulic |
Hydraulic |
|
Controller |
-- |
GS-PLC Touch |
Technical Parameters
|
Model |
MX-7180x16 |
MX-7180x20 |
MX-7180x40 |
|
Max. Workpiece to bi Groud |
1600x800x600mm |
2000x800x600mm |
4000x800x600mm |
|
Longitudinal Motion Stroke (Hydraulic) |
1700mm |
2100mm |
4100mm |
|
Distance From Table Surface To Spindle Center |
780mm |
780mm |
780mm |
|
Vertical Feed Wheel Movement Per Lap |
1mm |
1mm |
1mm |
|
Vertical Feed Hand Wheel Per Movement |
0.01mm |
0.01mm |
0.01mm |
|
The Max. Stroke of Transverse Motion |
850mm |
850mm |
850mm |
|
Horizontal Intermittent Movement Speed (Stepless) |
0.5-3m/min |
0.5-3m/min |
0.5-3m/min |
|
Longitudinal Velocity (Stdpless) |
3-30m/min |
3-30m/min |
3-30m/min |
|
Spindle Speeds |
1440r/min |
1440r/min |
1440r/min |
|
Wheel Size (Dia*Width*Bore) |
Φ450x50xΦ203mm |
Φ450x50xΦ203mm |
Φ450x50xΦ203mm |
|
Grinding Head Motor Power |
9kw |
9kw |
9kw |
|
Grinding Head Fast Lifting Motor Power |
0.75kw |
0.75kw |
0.75kw |
|
Max. Loading Capacity of Table |
1600kg |
2200kg |
3100kg |
|
Net Weight |
9500kg |
11000kg |
16000kg |
|
The Machined Surface of The Base of Parallelism |
1000:0.02mm |
1000:0.02mm |
1000:0.02mm |
|
Surface Roughness |
Ra0.63μm |
Ra0.63μm |
Ra0.63μm |
|
Machine Size |
4500x2480x2950mm |
4900x2480x2950mm |
13500x2480x3250mm |
