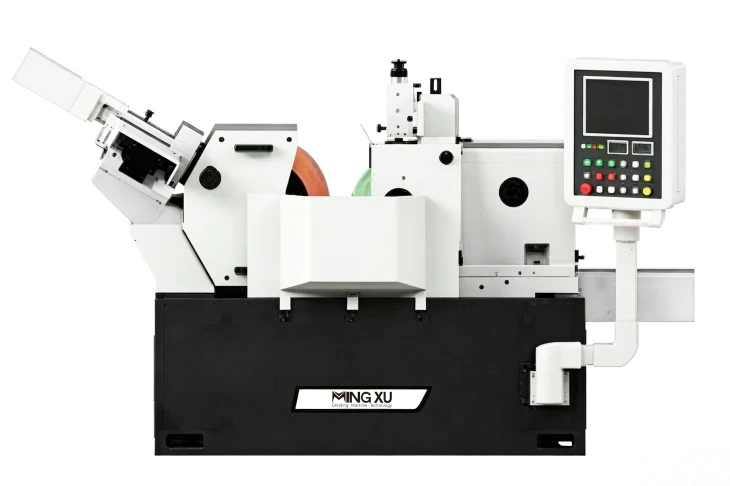

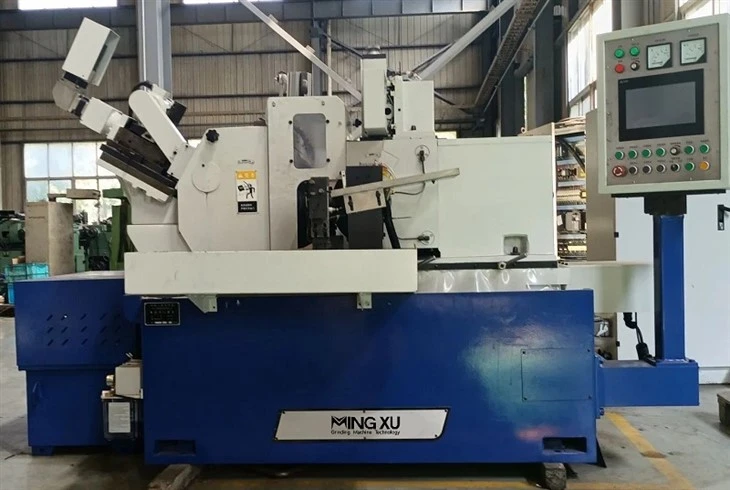

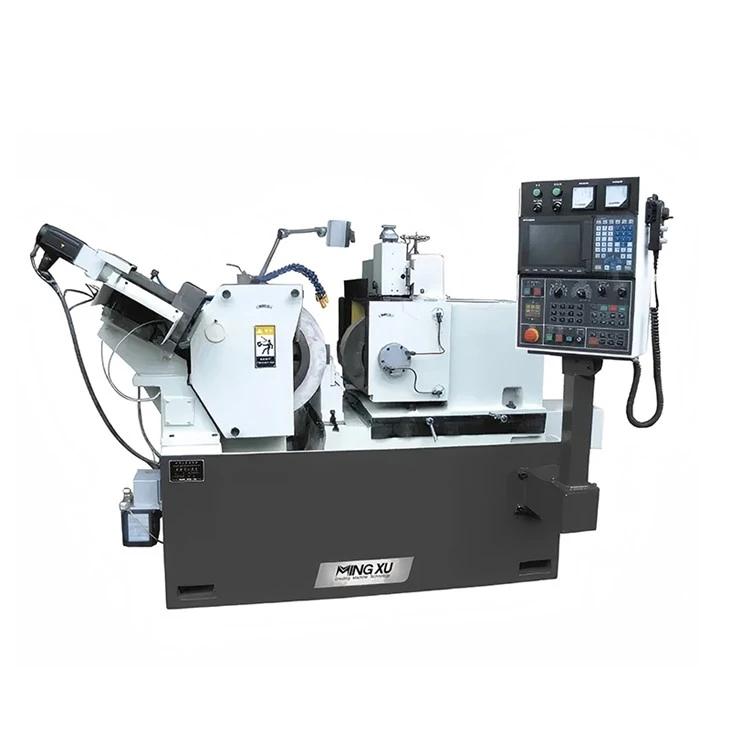

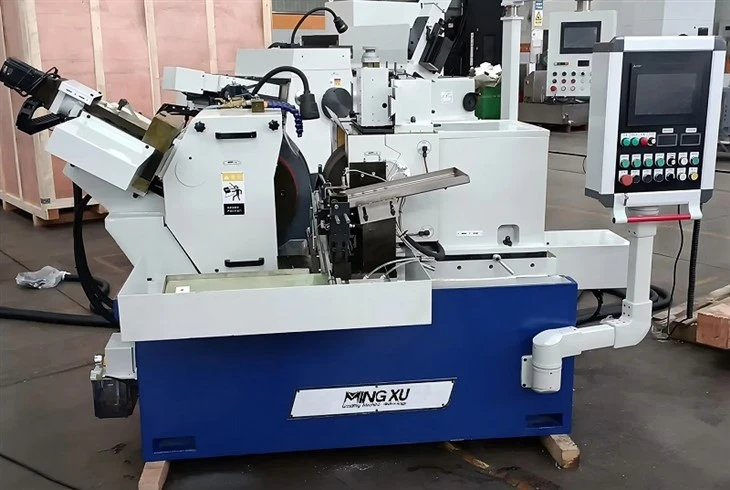

Precision Centerless Grinding Equipment

MX-MK1060 series precision centerless grinding equipment achieves highly efficient continuous processing without halting for clamping. It features automatic workpiece feeding, grinding, and ejection, enabling true continuous production and remarkable efficiency. By precisely adjusting the grinding wheel, selecting appropriate abrasive particles, and utilizing suitable coolant, it can directly attain mirror-grade surface roughness (Ra value as low as 0.2μm or below). This precision centerless grinder is not only a tool for enhancing quality but also a crucial piece of equipment for reducing large-scale production costs and achieving automation.







* Machine Bed

Use high-quality castings for normalized heat treatment and natural aging treatment to stabilize the internal structure and ensure that it is strong and wear-resistant during use with small deformation.



* Grinding Wheel & Guide Wheel Device

1. The grinding wheel spindle bearing is a four-piece tiltable ball head support bearing with high precision.

2. The guide wheel spindle structure adopts double support, and the bearing adopts four tiltable ball head support bearings, which has large load-bearing capacity and high precision.

3. The guide wheel adopts AC frequency conversion stepless speed regulation device, which can not only steplessly adjust the speed, but also has anti-drag function.



* Feeding Device

The feeding mechanism adopts a servo motor to drive a high-precision planetary gear reducer, and drives the ball screw through the coupling to achieve feeding.



* Dressing Device

The grinding wheel dresser adopts servo motor ball screw drive, which can dress any step without profiling plate. The guide wheel dresser reciprocates by motor driven ball screw, which has stepless speed regulation, and the dresser has good low-speed movement performance, which can complete the automatic dressing program.



* Electrical Control Device

1. The operation adopts 10" touch screen human-computer dialogue, with automatic cutting and grinding program, feed rate, speed, time, step difference are all adjustable.

2. The electrical system adopts Japan Mitsubishi system (Siemens system is optional)





Product Name	Precision Centerless Grinding Equipment
Model	MX-MK1060
Plunge-feed
Grinding Diameter	5-60mm
Max. Grinding Length	195mm
Through-feed
Grinding Diameter	5-60mm
Grinding Wheel Specification	P500x200(250)x305mm
Regulating Wheel Specification	PSA350x200x127mm
Grinding Wheel Speed	1318r/min
Regulating Wheel Speed	10-200r/min
Swivel Angle of Regulating Wheel
Vertical	-1°- +5°
Horizontal	0°- +5°
Min. Feed Amount	0.001mm
Dresser Min. Feed Amount	0.001mm
Height From Centerline of Gri. Wheel & Reg. Wheel To Work Rest	250mm
Total Power
Grinding Wheel Motor	15KW
Regulating Wheel Motor	1.5KW
Power Supply	3N 380V 50Hz
Machine Dimension (L*W*H)	2050x1680x1380mm
Machine Weight	About 3200Kg
Accuracy (Standard Bars)
Roundness	0.001mm
Cylindricity	0.002mm
Roughness	Ra0.16μm





Choosing our precision centerless grinding equipment means you will gain:

* Higher profit margins: Reduced unit costs due to increased efficiency & reduced waste due to improved yield, significant increase in net profit.

* Stronger market competitiveness: Ability to handle "extra-long, extra-precision, and extra-difficult" orders that other manufacturers cannot process, expanding your high-end customer base.

* Lower operational risks: High equipment stability reduces downtime for maintenance, ensuring continuous delivery capabilities and increasing customer trust.

* Better space utilization: Multi-functional single machine (combining roughing and finishing) and compact design save valuable factory space.
